Wiring the Box file picker to a custom invocable

Add the Box File Picker to your own Agentforce action so users pick a Box file in the action input instead of pasting file IDs. Two packaged pieces make it work:

FileSelection — global Apex type with selectedFileId / selectedFileName. The value the picker returns.
boxFileSelection — Lightning Type that renders the boxFilePicker UI (Recent Items / Browse Box Files / Current Record Folder).

Both ship in the package — you don’t build them.

Namespace (subscriber orgs)

Everything is under the boxagents namespace. In a subscriber org, reference packaged components with the prefix — the bare names won’t compile:

Component	In a subscriber org
Apex type	`boxagents.FileSelection`
Lightning Type	`boxagents__boxFileSelection`

Using bare FileSelection causes Invalid type: FileSelection / InvocableVariable fields do not support type … / Variable does not exist: req.file.

Steps

Add a boxagents.FileSelection @InvocableVariable to your Request.
Read req.file.selectedFileId (and selectedFileName).
In Agent Builder, map that input to the boxagents__boxFileSelection Lightning Type so the picker UI renders.

Example

global with sharing class BoxFilePickerExample {
    @InvocableMethod(label='Get Selected Box File (Example)' description='Accept a file-picker selection and return the file ID' category='Box')
    global static List<Response> getSelectedFile(List<Request> requests) {
        List<Response> responses = new List<Response>();
        for(Request req : requests) {
            if(req.file == null || String.isBlank(req.file.selectedFileId)) {
                throw new IllegalArgumentException('File selection is required');
            }
            Response resp = new Response();
            resp.fileId = req.file.selectedFileId;
            resp.fileName = req.file.selectedFileName;
            responses.add(resp);
        }
        return responses;
    }
    global class Request {
        @InvocableVariable(label='Select File' description='Choose a Box file' required=true)
         global boxagents.FileSelection file;
    }
    global class Response {
        @InvocableVariable(label='File ID') global String fileId;
        @InvocableVariable(label='File Name') global String fileName;
    }
}

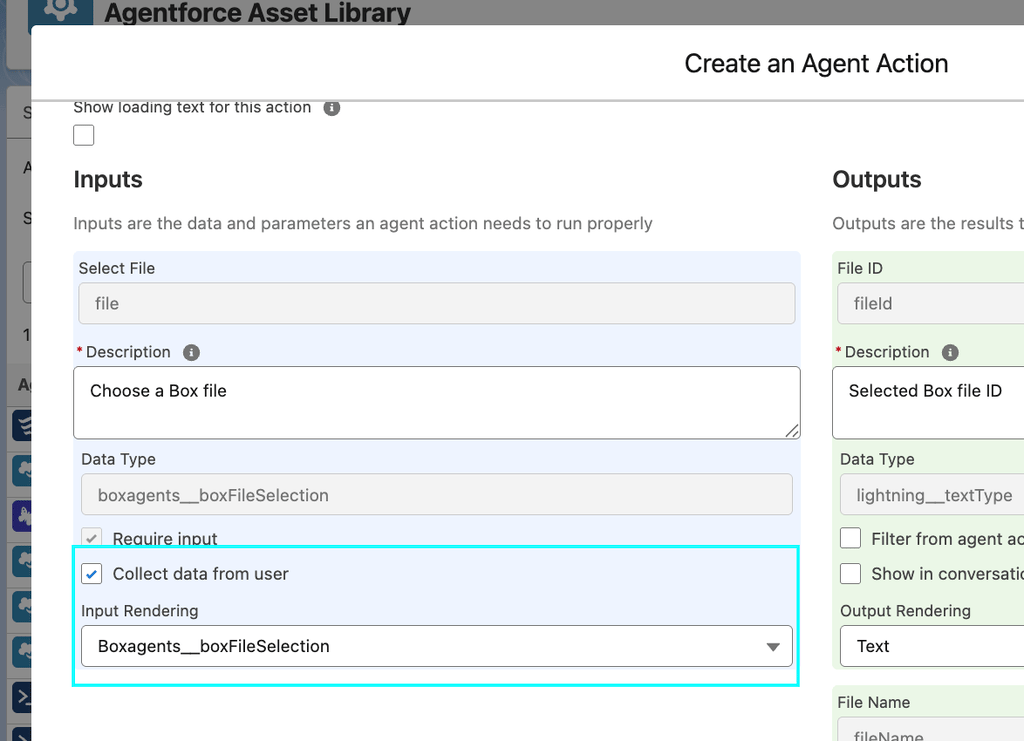

Mapping the input in Agent assets

The Apex input lets the action accept a selection; mapping it to the Lightning Type makes the picker UI render:

Open your custom action (Agentforce Studio → Agent Actions, or Flow Builder).
Select the Select File input.
Set its reference / Lightning Type to boxagents__boxFileSelection (Box File Picker).
Save and activate.

Notes

Namespace prefix in subscriber orgs is the #1 source of errors.
Null-check req.file / req.file.selectedFileId.
The ID is what Box APIs need; the name is for display/logging.
Full references: the shipped BoxAIAskWithFilePicker, BoxAIGenTextWithFilePicker, BoxAIExtractFieldsWithFilePicker, BoxAIExtractMetadataWithFilePicker.
